X17cni13-7 yog aMartensitic chromium-npib tsib xee stainless hlauMuab cov nyiaj tshuav ntawmmuaj zog txhua yam, zoo hardenability, hnav tsis kam, thiab mob corrosion tsis kamCov. Nws yog dav siv rauTWJ Shafts, Precision Neeg Kho Tshuab, Cheebtsam, cov khoom siv qub, thiab cov qauv txheej txheemxav tau ob qho tib si muaj zog thiab tawv.
Peb muabNtawv, Phaj, Bar, Forging, thiab Kev Cai - tshuab tshuab, backed los ntawm en / din cov qauv, thoob ntiaj teb xa cov kev pabcuam, thiab tag nrho cov khoom muaj ntawv pov thawj.
01
Siab zoo
02
Cov Khoom Siv Khoom Ua Si
03
Cov kws tshaj lij
04
KEV PAB CUAM
Tshuaj lom neeg muaj pes tsawg leeg (ib leeg%)
| Lub ntsiab | Cov ntsiab lus (%) |
|---|---|
| C | 0.15 – 0.20 |
| Cr | 12.5 – 14.0 |
| Ni | 6.5 – 7.5 |
| Mn | Tsawg dua los yog sib npaug rau 1.5 |
| Si | Tsawg dua los yog sib npaug rau 1.0 |
| P | Tsawg dua los yog sib npaug rau 0.04 |
| S | Tsawg dua los yog sib npaug rau 0.03 |
| Zaum fe | Seem |
Cov Khoom Siv Neeg Kho Tshuab
| Ntiag tug | Tus nqi |
|---|---|
| Lub zog tensile (RM) | 750 - 1050 MPa |
| Yield zog (RP0.2) | Ntau dua los yog sib npaug rau 600 MPa |
| Elongation (A5) | Ntau dua los yog sib npaug rau 12% |
| Kev nyuaj | 230 - 290 HB |
| Kev Cuam Tshuam | Zoo (optimized rau cov neeg kho tshuab lo lus) |
Muaj cov specifications (Metric + Imperial)
Cov ntawv txheeb / daim hlau
| Qhov tuab | Tuab (nti) | Qhov dav | Qho ntev | Kev nyiaj tau |
|---|---|---|---|---|
| 1-80 hli | 0.039–3.15" | 600-2500 hli | 1000-8000 hli | En iso txheem |

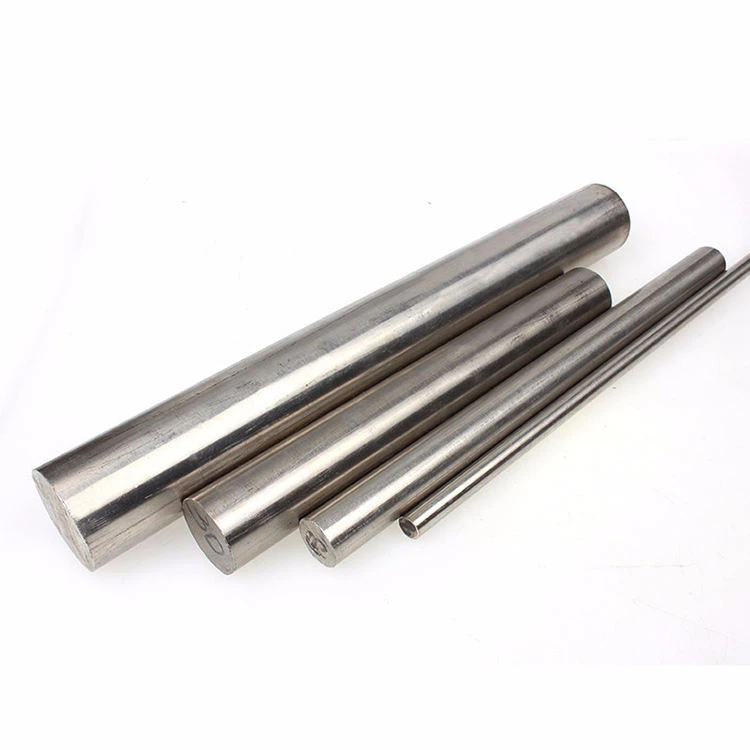

Hloov Bar
| Qhov dav | Txoj kab uas hla (nti) | Qho ntev | Yam tseem ceeb |
|---|---|---|---|
| 8-500 hli | 0.31–20" | 2000-6000 hli | Annealed / Qt |
Forged blocks
| Qhov loj | Muaj huab tais | Yam tseem ceeb |
|---|---|---|
| 80-800 hli | 3–32" | Forged / ntxhib machined / tiav machined |
Cov kav dej / Hlis
| Od | Od (nti) | Phab Ntsa Thickness | Wt (nti) | Ntaus |
|---|---|---|---|---|
| 10-630 hli | 0.4–25" | 1-40 hli | 0.04–1.6" | Seamless / Welded |
Cov Nta Tseem Ceeb & Cov Kev Pab
High Tensile Thiab Cov Cim Lub Zog Tom Qab Kho Thaum Tshav Kub Kub
Lub zog hnav tsis kam & zoo nto tas
Nruab nrab corrosion tsis kam vs carbon hlau
Cov tawv tawv zoo thiab seem ruaj khov
Tsim nyog rau Qhov Yuav Tsum Tau Siv Ob Zaug Ntxiv & Kev Muaj Zog
Zoo machinability nyob rau hauv tempered mob
Cov Kev Siv Raug Raug
Tws Shafts & Valve Cheebtsam
Turbine Thiab Compressor Xeem
Siab - lub zog tsim qauv sib xyaw
Neeg kho tshuab kis Shaft
Fasteners & Precision Machined Qhov
Muaj Cov Cuab Yeej Siv Thiab Cov Cuab Yeej
Qhia Tshav Kub Kub
| Kev ua | Qho so | Tsab ntawv |
|---|---|---|
| Ib tug anerting | 750-850 degree | KUB CUA TXIAS |
| Kev puas ntsoog | 950-1050 degree | Roj lossis huab cua quench |
| Npau taws | 200-400 degree | Kho hardness thiab tawv |
| Kev ntxhov siab nyem | 550-650 degree | Tom qab machining |
Kev Soj Ntsuam & Kev Ntsuas Zoo
100% Kev Tshawb Xyuas Chem Nyeem
Cov Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej (RM, RP0.2, Hardness)
Ultrasonic Soj ntsuam ib qib 2/3
Txoj Cai Ncaj & Kev Ntsuam Xyuas Sab
Nto Tshem Tawm Kev Ntsuas
En 102043.1 / 3.2Daim ntawv pov thawj muaj
Thib peb - Kev kuaj xyuas tog:SGS / TEV / BV / BV / INTERTTEK
Peb xa X17CRNI13-7 stainless hlau nrogruaj khov zoo, tus nqi sib tw, thiab cov khoom xa ceev ceev.
Hu rau peb pab neeg rauCov lus hais sai, cov ntaub ntawv cov txheej txheem, thiab OEM Machin Servicestxiav rau koj daim ntawv thov.
Peb qhov chaw nyob
Chav 4107, Runfeng Tsev, Sanqiao Txoj Kev Tshiab, Weiyang Cheeb Tsam, Xi'an City, Shaanxi xeev
Tus xov tooj
+86 15769214734
E -} email
Kev FAQ - X17CRNI13-7
Q1: Dab tsi ntawm stainless hlau yog x17crni13-7?
A: Nws yog aMartensitic Cr - ni stainless hlau, muab lub zog siab thiab ua kom haum corrosion.
Q2: Dab tsi yog lub hardness tom qab kev kho cua sov?
A: Feem ntau230-290 HB, nyob ntawm kub npau taws.
Q3: Yog x17cni13-7 sib nqus?
A: Yog. Nws tseem siab sib nqus tom qab kev kho cua sov.
Q4: Cov qib sib npaug li cas?
A: MuajTsis muaj ib qho ncaj nraim AISI sib npaug, tab sis nws zoo ib yam li siab - lub zog martensitic steels hauv 12-14% nce ntau.
Q5: Puas yog cov khoom siv weldable?
A: Weldability tsuas yog txwv. Preheating thiab post - weld tempering yog yuav tsum kom tsis txhob tawg.
Q6: Cov khoom siv tau ua dab tsi?
A: Annealed, Qt800-Qt1000, forged, thiab machining {2} {{3} kos duab.
Q7: Koj muab daim ntawv pov thawj dab tsi?
A: En 102043.1 / 3.2 MTC, Ntxiv rau kev xaiv SGS / TV / BV tshuaj xyuas cov lus ceeb toom.
Q8: Koj puas muab txiav, machining, thiab OEM kev cai seem?
A: Yog. Tuav, daim hlau, thiab kev lom zem tuaj yeem yog customized los kos rau cov duab kos rau ntiaj teb OEM cov neeg muas zaub.
